Capacitor- charging and discharging a capacitor through a resistor:

Show, in 3D, how a capacitor works...

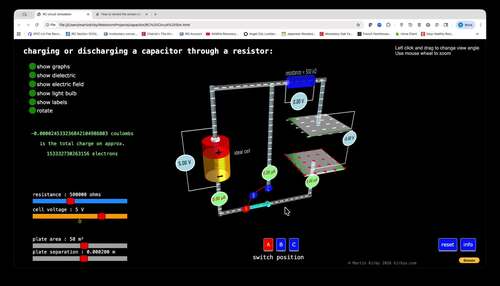

This simulation shows a capacitor in three states:

• Charging
• "Off"
• Discharging

A switch is used to select a state.

The simulation shows electrons moving appropriately, the charge on each plate, cell orientation, the correct orientation of polar molecules in a dielectric and correct values. The graphs, when expanded, show the recurring time constant.

Choose to show:

• Graphs (I/t, Q/t, V/t with time constants)
• A dielectric
• The electric field
• A light bulb: brightness changes with current.
• Labels/values
• Information page

Change:

• Capacitor resistance
• Capacitor plate area
• Capacitor plate separation
• Charging voltage
• Permittivity of the dielectric
• Insertion depth of the dielectric
• This simulation is 3D: with your mouse or finger you can zoom , pan, and change your point of view.
